BLACKMAGIC Micro Converter SDI

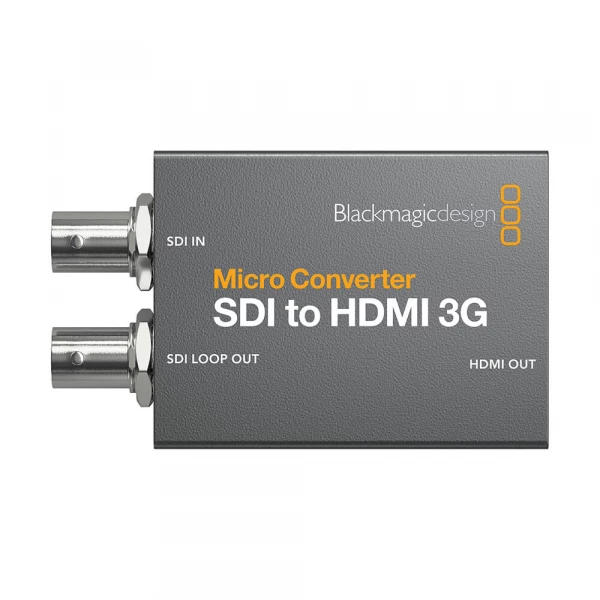

BLACKMAGIC Micro Converter SDI to HDMI 3G

• 1x SD/HD/3G-SDI Input & 1 x Loop Output
• 1 x HDMI Type A Output
• DCI 2K SDI In/Out | 1080p60 HDMI Out
• 3D LUT for Calibrating or Loop Output
• SDI A/B Selection | USB Power

This Super compact Micro Converter SDI to HDMI 3G from Blackmagic enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output.

The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

Specifications
Input
Video Input Connectors    1 x BNC (3G-SDI / HD-SDI / SD-SDI)
Input Video Format    SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps
Audio Input Connectors    None
Embedded Audio Input    SDI
Output
Video Output Connectors    1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Loop Output)
1 x HDMI
Output Video Format    SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL (768 x 576): 25 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL (768 x 576): 25 fps
Audio Output Connectors    None
Embedded Audio Output    HDMI
SDI
Standards
Video Standard Compliance    SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support    Version 2.2
Connectivity
Other I/O    1 x USB Type-C Input
Expansion Slots    None
Hardware
Tally Light    Yes
OS Compatibility    macOS 10.14.15 or Later
Windows 10
Power
Power Connector    1 x USB Type-C (4.4 to 5.2 VDC) Input
Power Consumption    2.5 W
Environmental
Operating Temperature    0 to 40°C
Storage Temperature    -20 to 60°C
Operating Humidity    0 to 90%
General
Dimensions    76.45 x 45.7 x 24.89 mm
Weight    150 g
