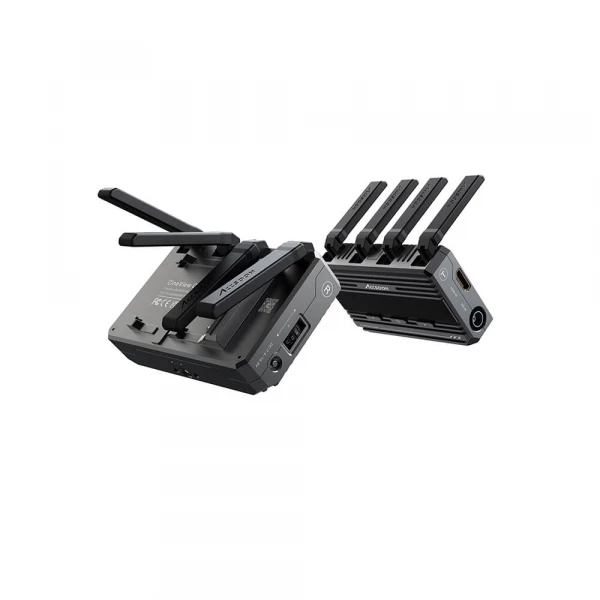

ACCSOON CineView Quad

• 2.4GHz+5GHz Dual-Band Transmission
• Extremely Low Latency Less Than 60ms
• SDI & HDMI In and Out
• Transmission Ranges Up to 150m
• Monitoring on Up to 4 Devices, Mix and Match

Accsoon CineView Quad is equipped with Accsoon’s patented Dual-Band transmission technology, allowing it to stream the signal via 2.4GHz and 5GHz WiFi at the same time. Then the receiver can intelligently identify interference and combine the two streams to form the complete audio and video stream greatly improving its stability and anti-interference ability.

With Dual-Band transmission, CineView Quad is far more stable than traditional WiFi video transmitters that only stream in 5GHz. Once on set, CineView Quad will provide you with a stable and glitch-free stream, handling even the toughest environment with ease.

With an average latency of under 60ms – CineView Quad has nearly undetectable lag while maintaining a high-quality image via its strong wireless signal.

With CineView Quad, you can plug up to 4 receivers into anything with an HDMI/SDI input: professional monitors, HD televisions and projectors.

CineView Quad not only transmits a WiFi signal directly to dedicated receivers but also allows for a video signal to be sent to iOS or Android devices.

CineView Quad supports video input of up to 1080p 60fps and audio input of 44.1KHz/48KHz 16bit/24bit. The transmitter alters the bitrate and video quality of the outgoing signal to maximize connection and framerate to make sure you are always able to monitor what is happening.

You can now supply CineView Quad with power from any NP-F battery. Keep extra batteries on hand for all-day shooting or plug CineView Quad into ground power via the built-in DC input on both the transmitter and receiver. Now, you can send beautiful HD videos to your monitors for as long as the shoot requires.

Included in the box
1 x CineView Quad TX
1 x CineView Quad RX

CineView Quad Details
Projects:    Transmitter
Video Input:    SDI/HDMI
SDI Input Format:    1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
HDMI Input Format:    1080p 23.98/24/25/29.97/30/50/59.94/60fps
DC Port:    5.5mmx2.1mm center positive
DC Voltage:    7.4~16.8V
Audio:    44.1KHz/48KHz 16bit/24bit PCM
Latency:    <0.06s (Camera latency not included)
OLED Display:    1.3inch
Transmission Power:    17~20dBm
Transmission Range:    500ft (No obstacles, no interference)
Power Consumption:    4.5Watt (Typical)
Operating Environment Temperature:    -10~40℃
Dimensions:    105mmx66mmx31mm (Antennas not included)
Weight:    225g (Antennas included)
Projects:    Receiver
Video Output:    SDI/HDMI
SDI Output Format:    1080p 24/25/30/50/60fps Level A
HDMI Output Format:    1080p 24/25/30/50/60fps
DC Port:    5.5mmx2.1mm center positive
DC Voltage:    7.4~16.8V
OLED Display:    1.3inch
Power Consumption:    5Watt (Typical)
Operating Environment Temperature:    -10~40℃
Dimensions:    105mmx66mmx31mm (Antennas not included)
Weight:    225g (Antennas included)
