Micro Converter SDI to HDMI 3G PSU

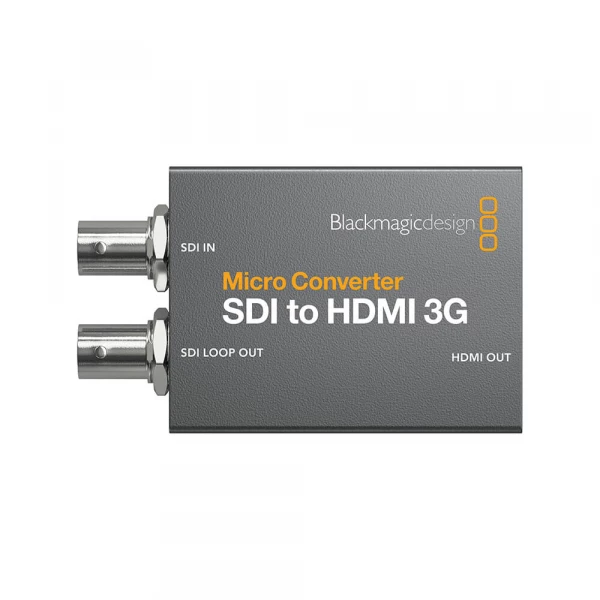

Blackmagic Design Micro Converter SDI to HDMI 3G (with Power Supply)

• 1x SD/HD/3G-SDI Input & 1 x Loop Output
• 1 x HDMI Type A Output
• DCI 2K SDI In/Out | 1080p60 HDMI Out
• AC Power Supply & Socket Adapters
• 3D LUT for Calibrating or Loop Output
• SDI A/B Selection | USB Power
• Embedded Audio

This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48.

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters

Specifications
Input
Video Input Connectors    1 x BNC (3G-SDI / HD-SDI / SD-SDI)
Input Video Format    SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps
Audio Input Connectors    None
Embedded Audio Input    SDI
Output
Video Output Connectors    1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Loop Output)
1 x HDMI
Output Video Format    SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL (768 x 576): 25 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL (768 x 576): 25 fps
Audio Output Connectors    None
Embedded Audio Output    HDMI
SDI
Standards
Video Standard Compliance    SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support    Version 2.2
Connectivity
Other I/O    1 x USB Type-C Input
Expansion Slots    None
Hardware
Tally Light    Yes
OS Compatibility    macOS 10.14.15 or Later
Windows 10
Power
Power Connector    1 x USB Type-C (4.4 to 5.2 VDC) Input
Power Consumption    2.5 W
Environmental
Operating Temperature    0 to 40°C
Storage Temperature    -20 to 60°C
Operating Humidity    0 to 90%
General
Dimensions    76.45 x 45.7 x 24.89 mm
Weight    150 g
